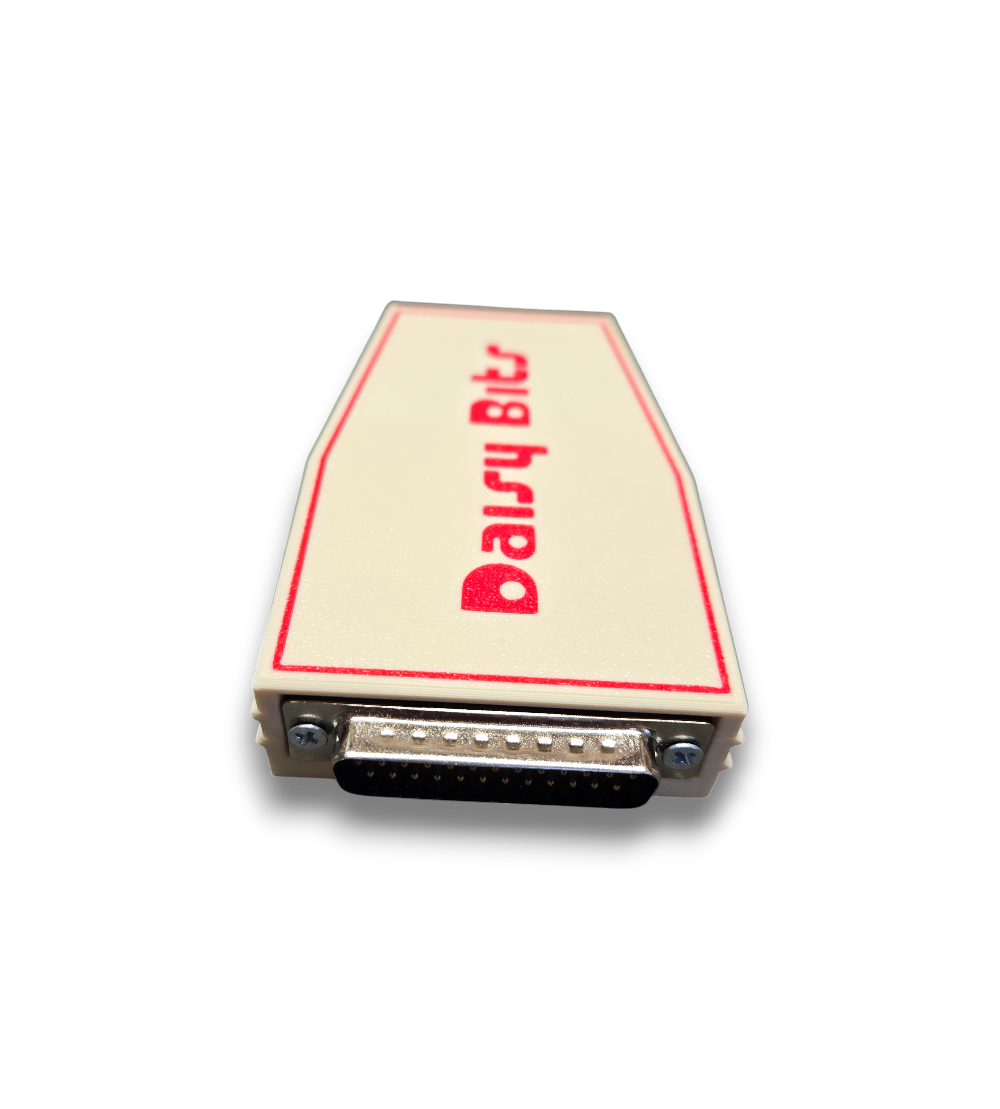

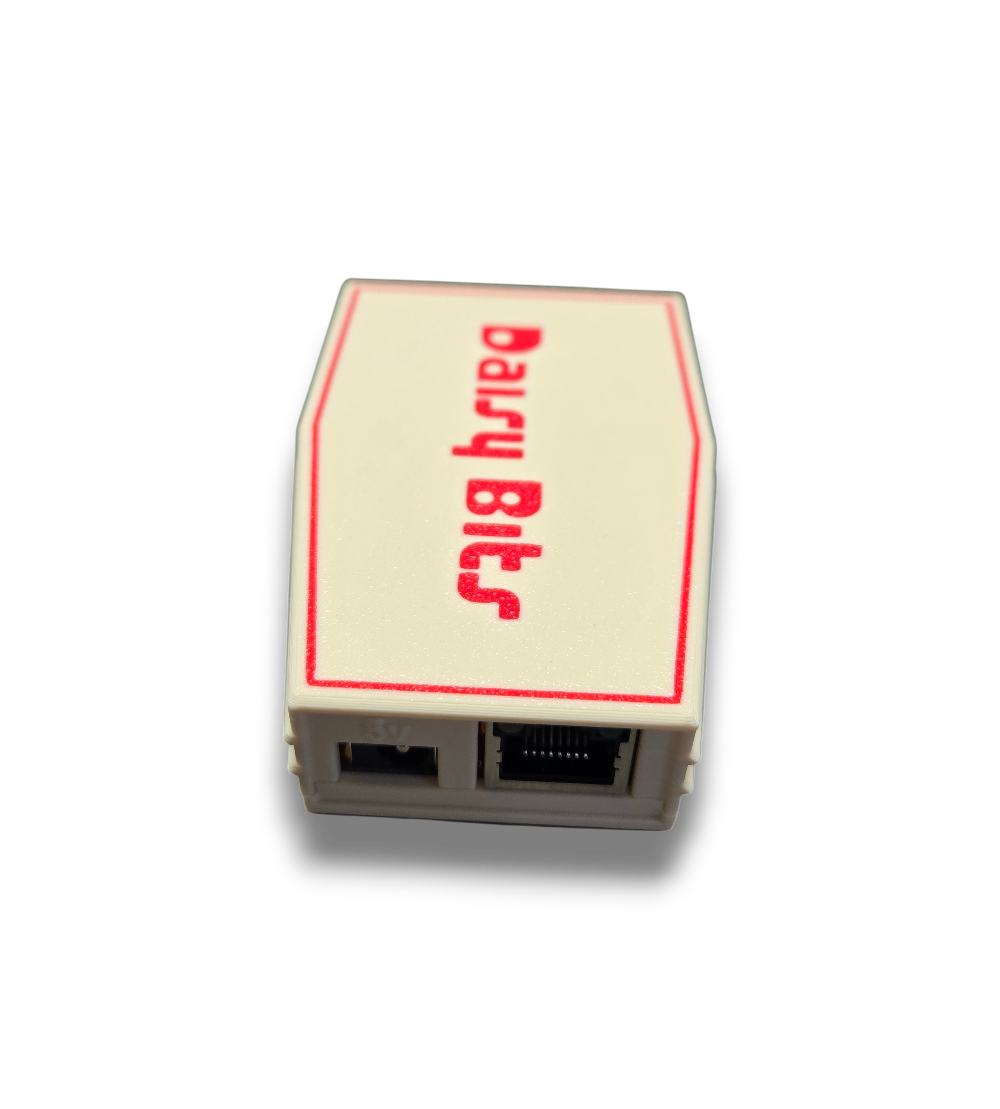

Daisy Bits - DB25 to Daisy Chain

Model: DBIT
Shipping Weight: 5 lbs
11 Units in Stock
Manufactured by: DSFRobots

Ask a Question

$39.00

Add to Cart:

Daisy Bits - DB25 to Daisy Chain
With Daisy Bits, 24 Discreet active low inputs can be converted to a Daisy chain output. For example if you have a 240 channel Bluebox controller, you can now plug this into one of your spare outputs and run a CAT7 cable to a maximum of 3 Blue Lightnings for light control.
Another possibility if you have a 3rd party controller, you can now use BlueLightning on your setup by wiring into the DB25 connector.
BlueLightning channels can be triggered by applying a ground to pins 1-24, with pin 25 being the common positive from your power supply (5-24Vdc).
All Daisy Bit inputs are optically isolated.

Item includes:
Daisy Bits adapter
Daisy Bits 5v Power supply
CAT7 Cable
